The CEP-25ML
has been designed to irradiate solar cells with monochromatic light of constant energy and constant photons without wavelength dependence,and measures the spectral response and quantum efficiency of various solar cells.The system is equipped with a color bias light source for multi-junction solar cells.
Equipped with white bias light source as standard,spectral response measurement under simulated sunlight and I-V measurement as a solar simulator using AM-1.5G can be easily performed.

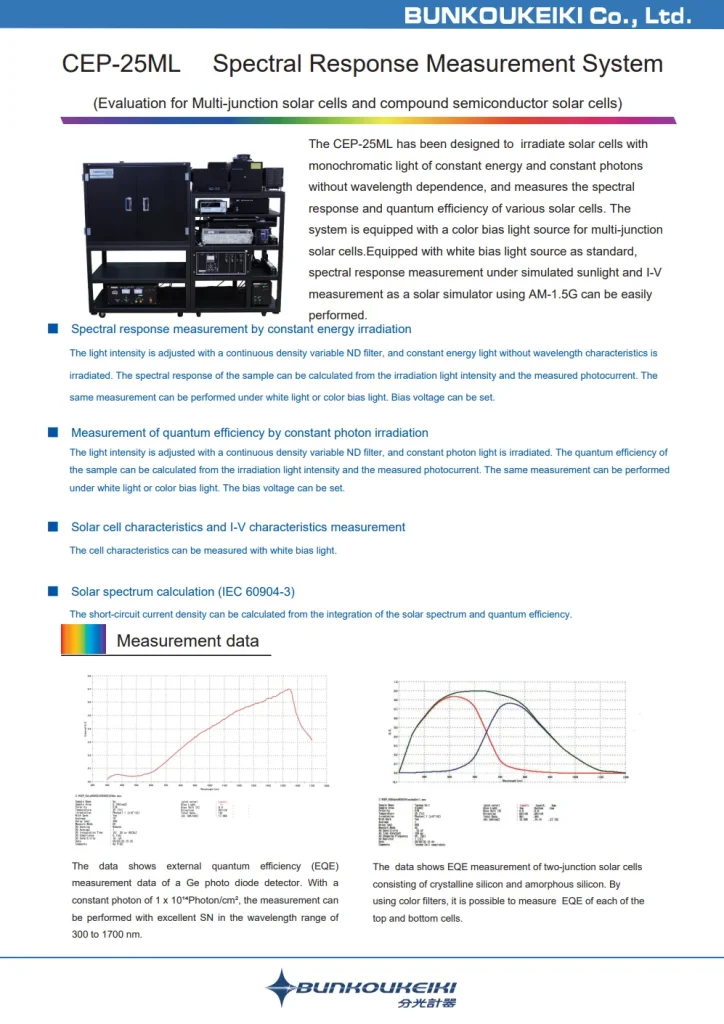

Catalog（PDF） Download
CEP-25ML Spectral Response Measurement System 〉
A4／2pages／1.9MB
Measurement data

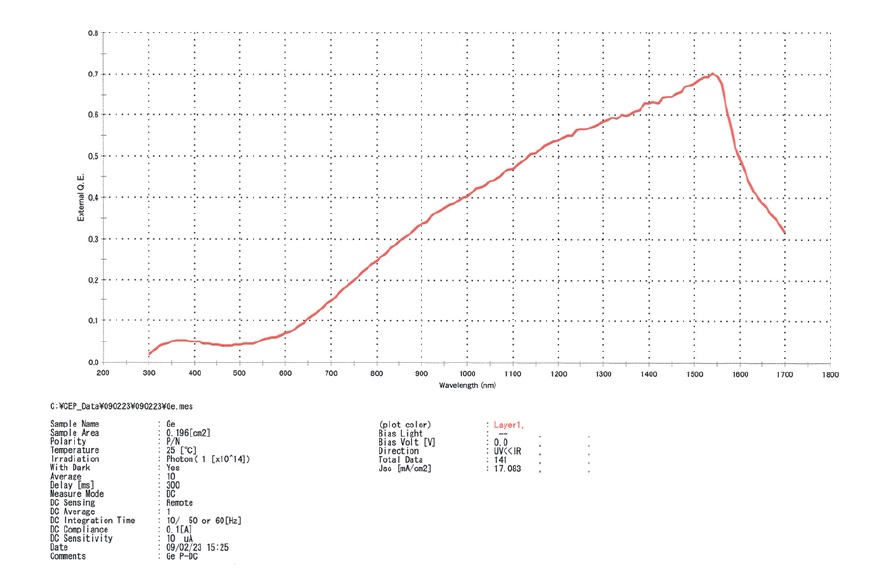

The data shows external quantum efficiency(EQE) measurement data of a Ge photo dioce ditector.With a constant photon of 1×1014photon/cm2, the measurement can be permed with excekkent SN in the wavelength range of 300 to 1700nm.

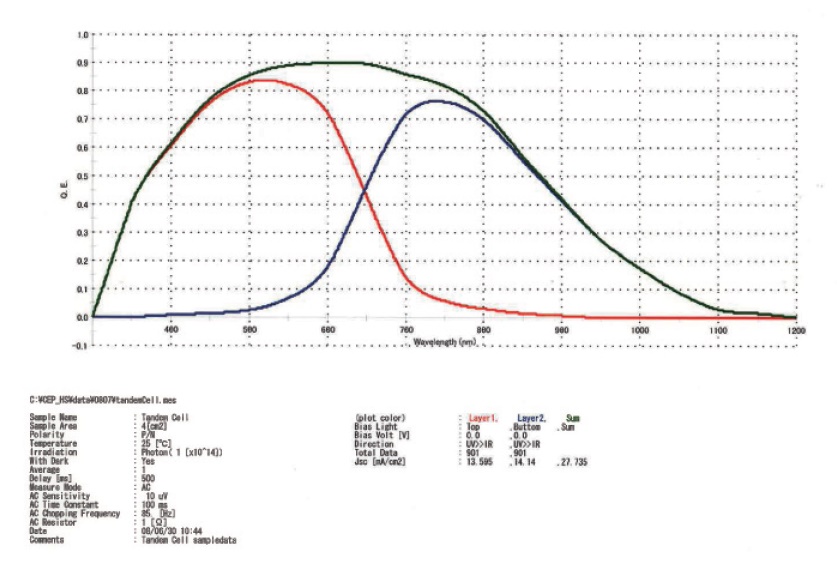

The data is EQE measurement data of two-junction solar cells consisting of crystaline silicon and amorphous silicon.By using color filters, it is possible to measure the EQE of each of the top and bottom cells.
Features
Spectral response measurement by constant energy irradiation
- The light intensity is adjusted with a continuos density variable ND filter,and constant energy light without wavelength characteristics is irradiated. The spectral response of the sample can be calculated from the irradiation light intensity and the measured photocurrent. The same measurement can be performed performed under white light or color bias light. Bias voltage can be set.
Measurement of quantum effciency by constant photon irrdiation
- The light intensity is adjusted with a continuous density variable ND filter,and constant photon light is irradiated. The quantum effciency of the sample can be calculated from the irradiation light intensity and the measured photocurrent. The same measurement can be performed under white light or color bias light. The bias voltage can be set.
Solar cell characteristics and I-V chraccteristics measurement
- The cell characteristics can be measured with white bias light.
Solar spectrum calculation(IEC 60904-3)
- The short-circuit current density can be calculated from the integration of the solar spectrum and quantum effciency.
Specifications
| Mesurement | Spectral response,quantum efficiency,I-V curve |
| Wavelength range | 300～1700nm（～2000 can be expanded as an option) |
| Light source for monochromatic light | Xe lamp + Halogen lamp |
| lrrdiation area for monochromatic light | 20×20mm（can be expended to 50×50mm as an option） |
| Wavelength purity | Variable,Max 20nm |
| lrrdiation intensity | 5～50μW/cm2 or more（Wavelength 350～1200nm） |
| Positional non-uniformity | Within ±2.5% |
| Constancy of wavelenth intensity | Within ±3% |
| Irradiation mode | Constant energy and constant photon |
| Meaurement mode | DC and AC（13～100Hz） |
| Light source for White light | Xe lamp (Auto color bias) |
| Irrdiation area or White light | 20×20mm |
| Spectral match | JIS C8912・C8933 ClassA |
Standard Configration
- Xe lamp 500W (for monochromatic light)
- Xe lamp 500W Power supply(for monochromatic light)
- Halogen lamp 400W(for monochrmatic light)
- Halogen lamp 400W power supply(for monochromatinc light)
- Light condensing optical system(for 2 light source type)
- Monochromator
- Grating 600line/mm brazed at 300nm
- Grating 600line/mm brazed at 500nm
- Grating 600line/mm brazed at 1600nm
- Light emitting optical system(auto continuous density variable ND filter)
- Variable frequency chopper DC/13～100Hz
- High order light cut filters
- Xe lamp 150W（for White light）
- Xe lamp 150W Power supply(for White light）
- Optical system for white light （Bulit-in AM1.5G filter）
- Color filter holder
- Sample compartment
- Source meter
- Lock-in amplifier
- Si Photo diode detector(for monochromatic light )
- TP unit
- Si detector holder
- Si Photo diode detector(for white light)
- Cable for solar cell(XLR-Alligator clip)
- Interface unit
- Note PC
- Instruction Manual
Options
- Various sample holders
- Automatic filter switching mechanism for white bias(ND filter / color Filter)
Dimensions and Weight
- Power：AC100V ±10V 50/60Hz 20A
- Main unit：Approx.W1750×Ｄ950×H1460mm
- Weight：Approx.400Kg
