Measurement of refractive index of infrared window, infrared lens, chalcogenide glass
Based on the minimum deviation method (Fraunhofer method),monochromatic light of arbitrary wavelength (1 to 14µm）is irrdiated to a prism shaped sample, and the angle of transmitted light with respect to incident light is measured to measure the refractive index of the sample. The newly deve

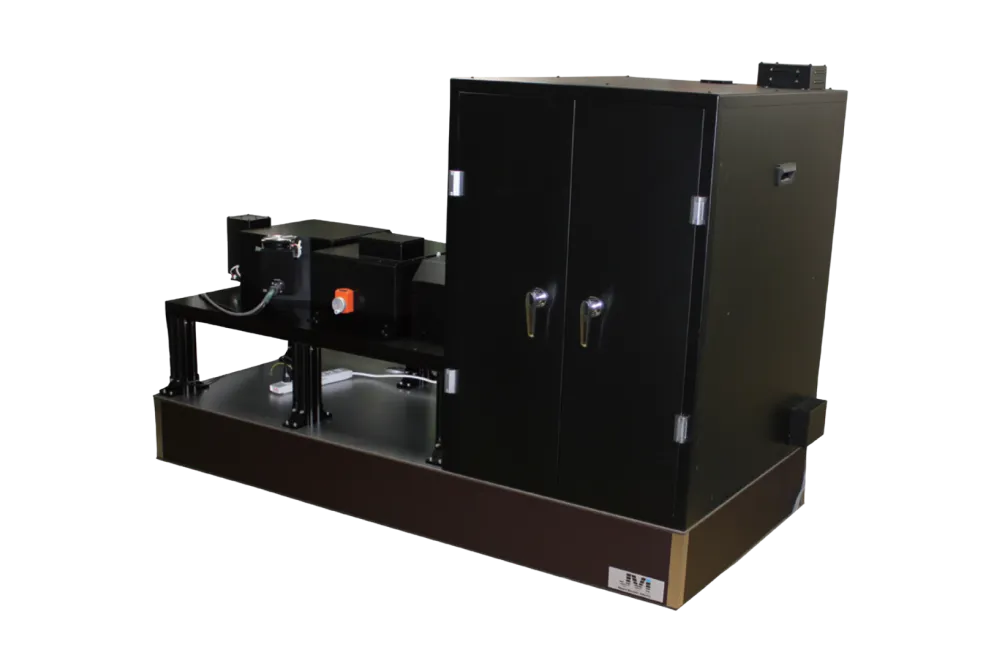

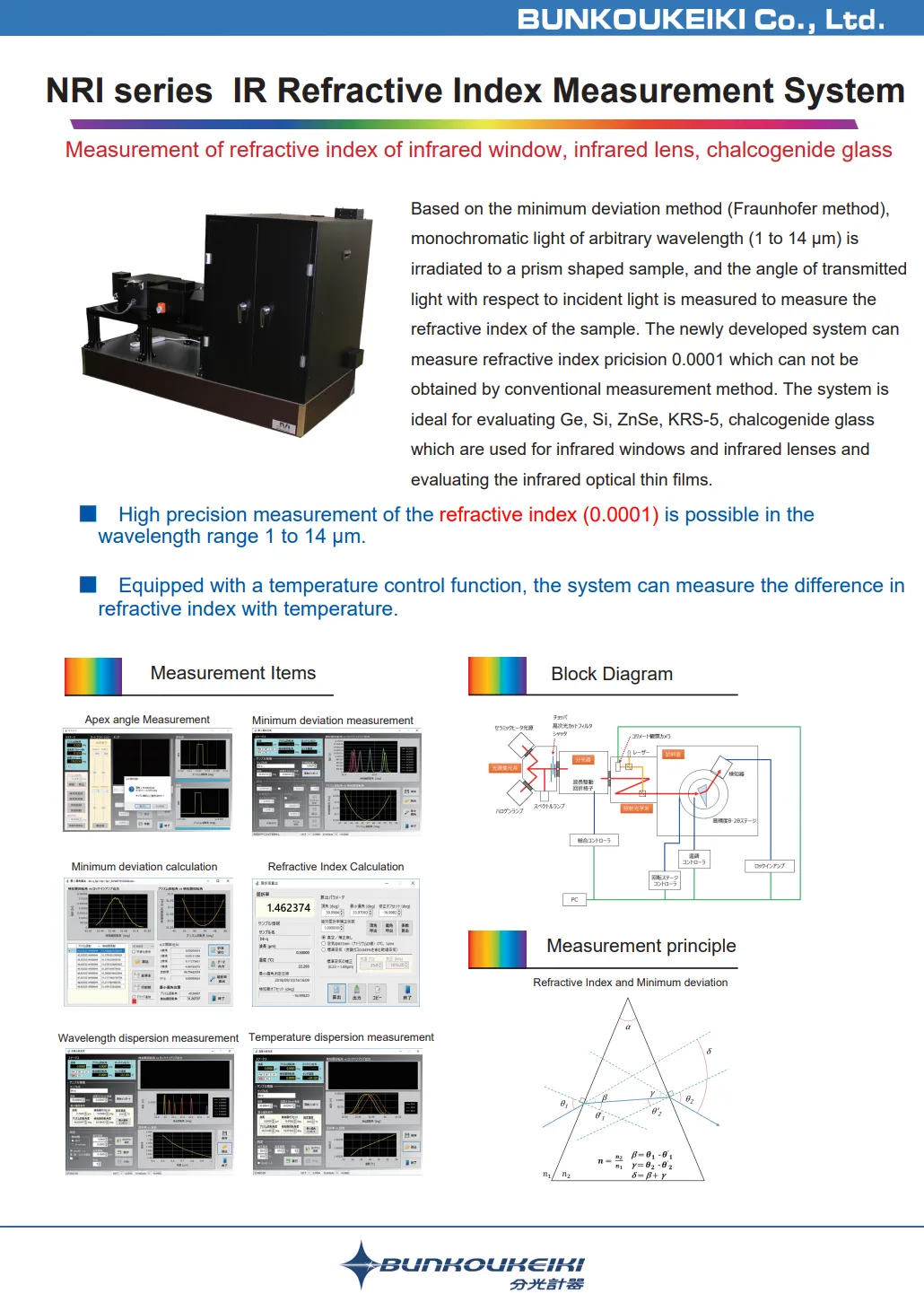

Catalog（PDF） Download
NRI series IR Refractive Index Measurement System 〉
A4／2pages／1.79MB
Features
- High precision measurement of the refractive index (0.0001) is possible in the wavelength range 1 to 14µm
- Equipped with a temperature control function, the system can measure the difference i refractive index with temperature.

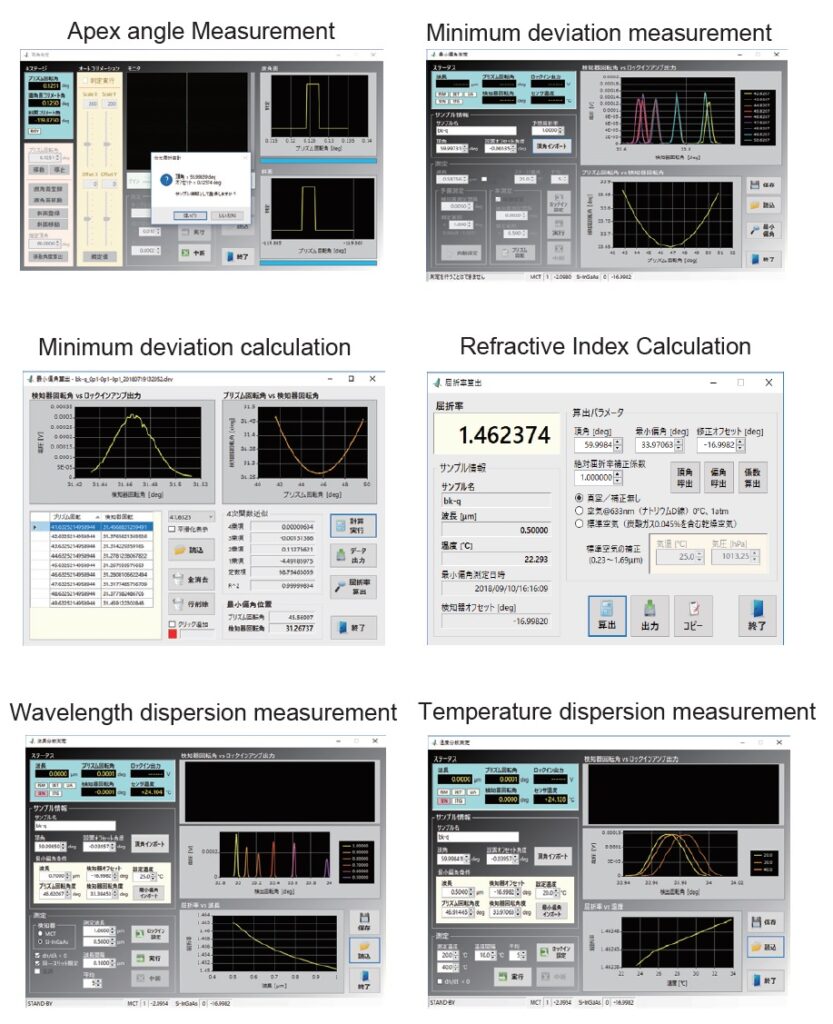

Measurement Items

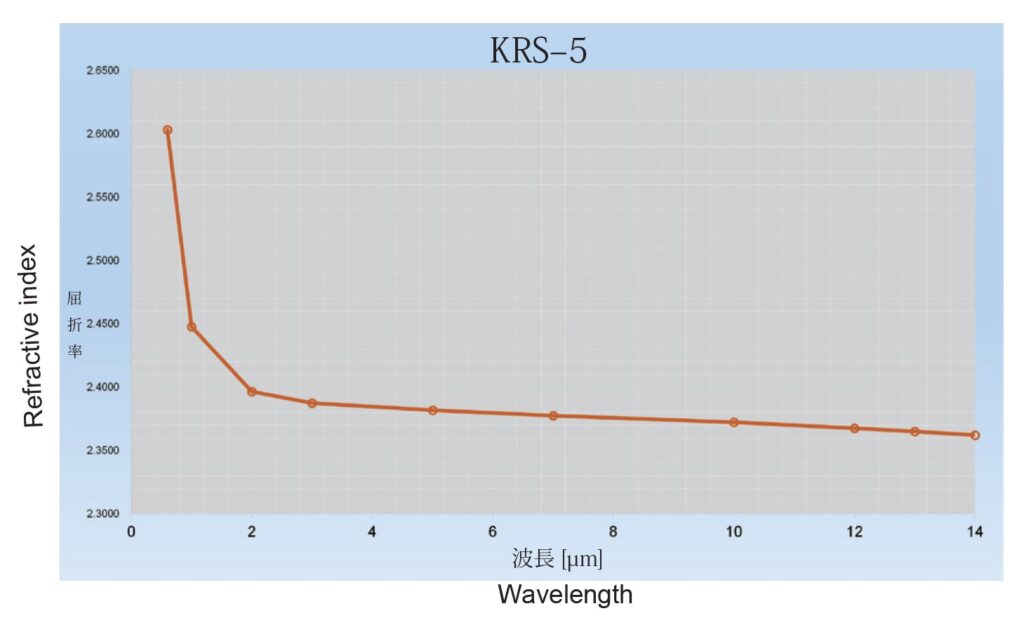

Measurement Data

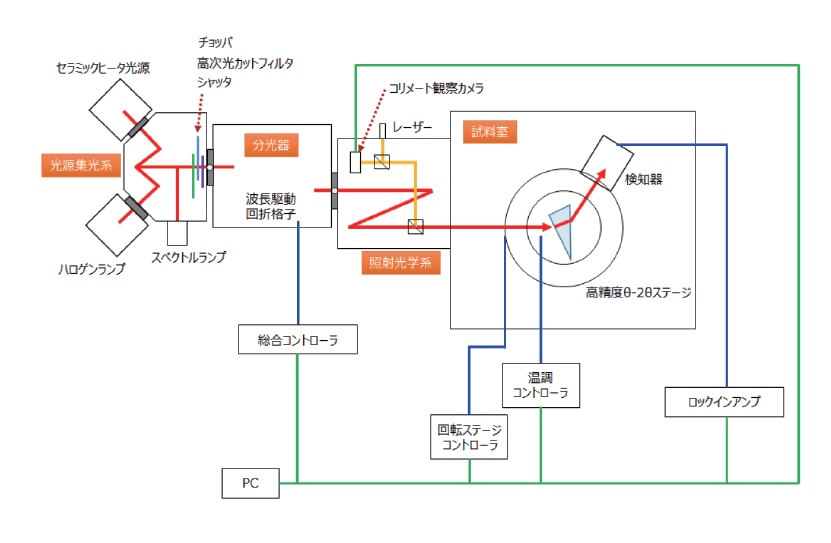

Block Diagram

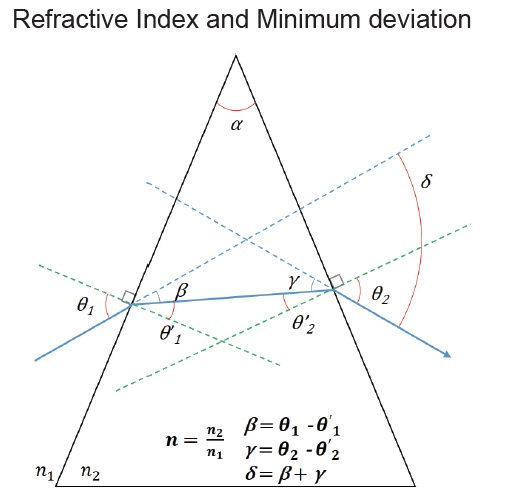

Measurement Principle
Specifications
| Measurenment method | Monimum deviation ( Draunhofer method ) |
| Measurement Items | Refractive index, Apex angle ・Changes in refractive index by wavelength(dn/dλ） ・Changes in refractive index by sample temperature(dn/dT） |
| Refractive index measurement range | 1～4 |
| Measurement precision | 0.0001（1×10-4） |
| Measurement wavelength range | 1～14μm |
| Irrdiation wavelength range | 400nm～20µm*1 |
| Temperature control range | -40～80℃*2 |
| Irrdiation size | approx.Φ8mm |
| Measurement functions | Apex angle, Determination of minimum deviation position, Refractive index |
| Measurement mode | 1point measurement, WL dependence, Temperature denpendence |
| Setting parameters | Wavelength, Temperature, Expected refractive index |
| Saving format | Text format ( CSV format ) |
*1 In order to perform measurement in 14 to 20µm, it is necessary to add a higher order light cut filter.
*2 Due to the set temperature of the temperature controller, it may differ depending on the measurement sample.
Standara Configuration
- Caramic heater light source
- Halogen lamp light source
- Helium lamp（ｄ line 587.56nm）
- Light source converging system
- Monochromator and gratings
- Irrdiation optical system
- Laser for apex angle measurement
- Rotating stage and controller
- Sample holder
- Temperature control stage and controller
- Lock-in amplifer
- Sample compartment and frame
- Detector
- General controller
- Software
- Control PC
Option
- Color filter
- ND filter
- Various stage for back electrode type sample, DSC sample stage and etc.
Utilities
- Main unit：Approx.W1800×Ｄ900×H1800mm
＊Excluding PC and rack＊
